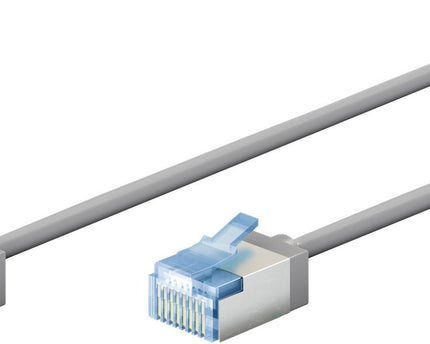

Ultra-flexible 0.25M CAT 6A patch cable, slim, U/FTP, gray

Product form

Ultra-flexible 0.25M CAT 6A patch cable, slim, U/FTP, gray

The super slim CAT cables with extra short connectors drastically reduce the material volume in server cabinets and patch panels... Read more

SKU: 74305

Delivered tomorrow

(€3,38 Incl. VAT)€2,79


    Need a larger quantity?

    • Shipped today? Order within: Nov 24, 2024 21:00:00 +0100
    • check Lowest price guarantee!
    • check Shipping from just €5.95
    • check Pay afterwards after 14 days
    • check 2 year warranty on your purchase

    Can we help you with anything? Can we help you with anything?

    Do you have any questions or need advice? We are happy to help you!


    Contact us!

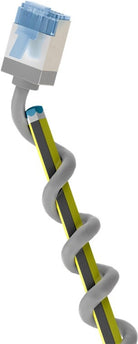

    The super slim CAT cables with extra short connectors drastically reduce the material volume in server cabinets and patch panels - for significantly improved air circulation and less heat development than with conventional cabling. In addition, the soft TPE sheath and slim copper conductors provide the special flexibility and material efficiency that make this cable generation the perfect network partner.

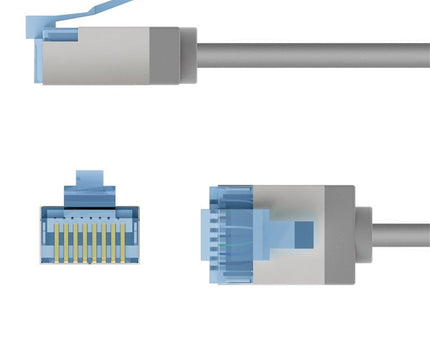

    Super thin LAN cable with extra short RJ45 connectors for reduced cable volume in the server cabinet or patch panel, resulting in optimized air circulation

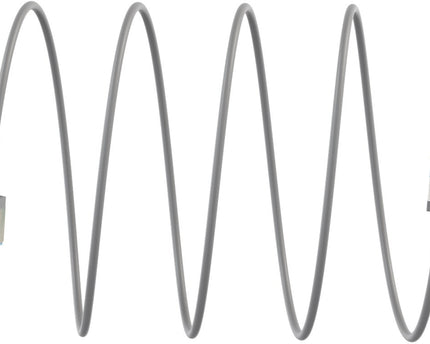

    Safe and flexible: Without twisted pair shielding and with a low-smoke, halogen-free TPE sheath for a particularly small bending radius and high flexibility

    With AWG 32 and an outer diameter of 3.8 mm, the cable is ultra-thin, but just as powerful as a standard CAT cable

    The CAT 6A network cable is perfect for fast connections such as 10 Gigabit Ethernet 10GBASE-T, 100BASE-TX, 1000BASE-T and 10/100/1000/10000 Mbit/s

    The RJ45 cable is suitable for Power over Ethernet (PoE, PoE+) and CAT 6A tested (supplied with individual measurement protocol)

    High-quality copper conductor (CU) and gold-plated plug contacts ensure low transmission resistance and prevent corrosion

    The compact kink protection effectively prevents cable breakage and ensures a long service life of the Ethernet cable

    Technical specifications

    Connection, contact material: Gold-plated
    Connection type: RJ45 male (8P8C)
    Connection 2, type: RJ45 male (8P8C)
    Contact us: EIA/TIA-568B
    Kink protection: both sides
    Specification: CAT6A
    Shielding class: U/FTP
    Cable type: Slimcable (super flexible)
    Cable sheath material: LSZH-TPE
    Cable length: 0.25 meters
    Inner conductor material: CU (copper)
    bending radius: >32.5mm
    Cable sheath diameter (approx.): 3.8mm
    Number of shields: 1x
    Type 1, shielding: foil (aluminium) PiMF
    AWG: 32/7 (stranded)
    maximum bandwidth: 500 MHz
    Impedance: 100Ω
    Colour: Grey
    Markings: WEEE, CE
    Special feature: Length indication on connector
    Operating temperature from: -20°C
    Operating temperature up to: 75 °C
    Packaging type: Cable label
    Consumption unit: 1 pc. in bulk
