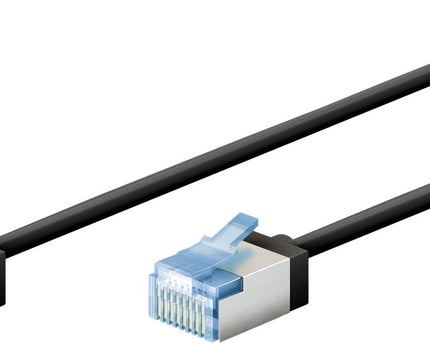

Ultra-flexible 5M CAT 6A patch cable, slim, U/FTP, black

Product form

Ultra-flexible 5M CAT 6A patch cable, slim, U/FTP, black

The super slim CAT cables with extra short connectors drastically reduce the material volume in server cabinets and patch panels... Read more

SKU: 74321

Delivered tomorrow

(€8,46 Incl. VAT)€6,99


    Need a larger quantity?

      • check Lowest price guarantee!
      • check Shipping from just €5.95
      • check Pay afterwards after 14 days
      • check 2 year warranty on your purchase

      Can we help you with anything? Can we help you with anything?

      Do you have any questions or need advice? We are happy to help you!


      Contact us!

      The super slim CAT cables with extra short connectors drastically reduce the material volume in server cabinets and patch panels - for significantly improved air circulation and less heat development than with conventional cabling. In addition, the soft TPE sheath and slim copper conductors provide the special flexibility and material efficiency that make this cable generation the perfect network partner.

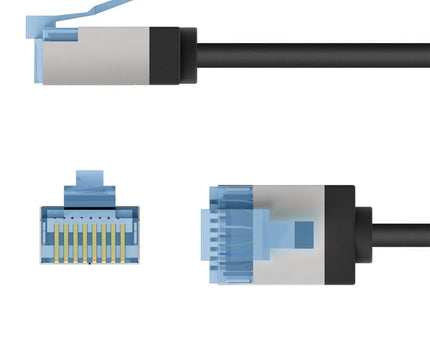

      Super thin LAN cable with extra short RJ45 connectors for reduced cable volume in the server cabinet or patch panel, resulting in optimized air circulation

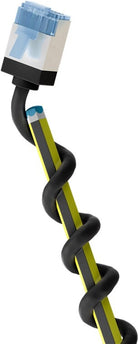

      Safe and flexible: Without twisted pair shielding and with a low-smoke, halogen-free TPE sheath for a particularly small bending radius and high flexibility

      With AWG 32 and an outer diameter of 3.8 mm, the cable is ultra-thin, but just as powerful as a standard CAT cable

      The CAT 6A network cable is perfect for fast connections such as 10 Gigabit Ethernet 10GBASE-T, 100BASE-TX, 1000BASE-T and 10/100/1000/10000 Mbit/s

      The RJ45 cable is suitable for Power over Ethernet (PoE, PoE+) and CAT 6A tested (supplied with individual measurement protocol)

      High-quality copper conductor (CU) and gold-plated plug contacts ensure low transmission resistance and prevent corrosion

      The compact kink protection effectively prevents cable breakage and ensures a long service life of the Ethernet cable

      Technical specifications

      Connection, contact material: Gold-plated
      Connection type: RJ45 male (8P8C)
      Connection 2, type: RJ45 male (8P8C)
      Contact us: EIA/TIA-568B
      Kink protection: both sides
      Specification: CAT6A
      Shielding class: U/FTP
      Cable type: Slimcable (super flexible)
      Cable sheath material: LSZH-TPE
      Cable length: 5 meters
      Inner conductor material: CU (copper)
      bending radius: >32.5mm
      Cable sheath diameter (approx.): 3.8mm
      Number of shields: 1x
      Type 1, shielding: foil (aluminium) PiMF
      AWG: 32/7 (stranded)
      maximum bandwidth: 500 MHz
      Impedance: 100Ω
      Colour black
      Markings: WEEE, CE
      Special feature: Length indication on connector
      Operating temperature from: -20°C
      Operating temperature up to: 75 °C
      Packaging type: Cable label
      Consumption unit: 1 pc. in bulk
