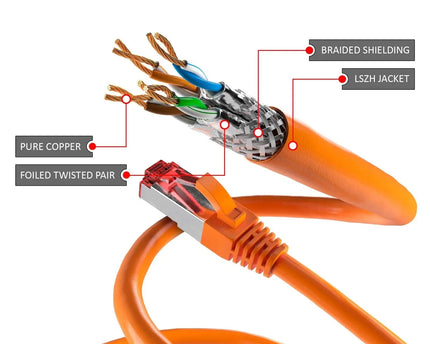

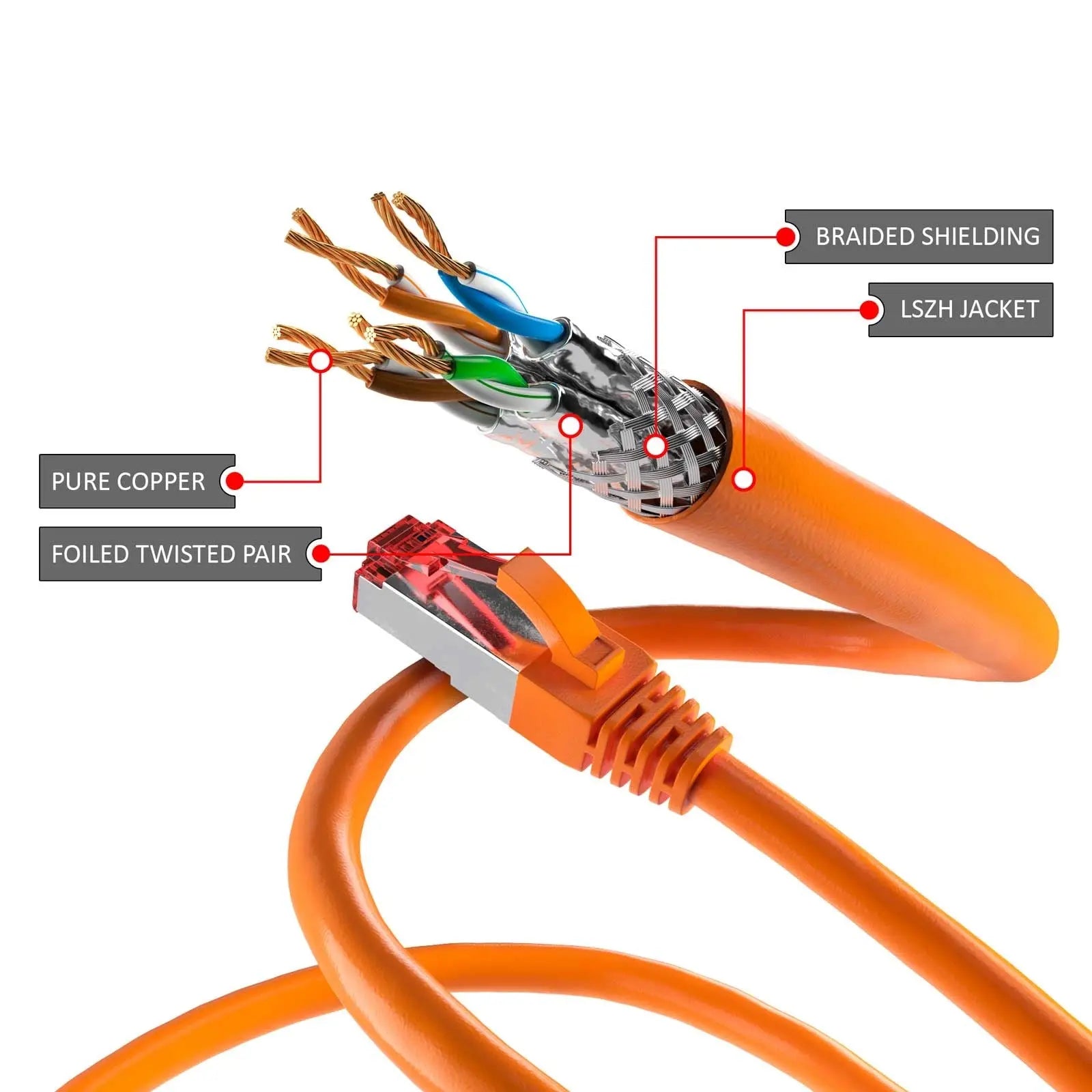

Double shielded LAN/network cable to connect network components with 2 x RJ45 connectors CAT 6tested with 3µ gold plated PINs pairs screening: PIMF (pairs in metal foil) + outer shield: braiding with length indication on the slimline strain relief with latch protection pair-sequence acc. to EIA/TIA 568B
Connection, type RJ45 male (8P8C) Connection 2, type RJ45 male (8P8C) Latch protection both sides Connection, shielding yes Cable type round cable Specification CAT 6 Shielding class S/FTP (PiMF) AWG 28/7 (stranded) Cable sheath diameter (approx.) 6 mm Inner conductor material CU (copper) Cable length 0.5 m Material cable sheath LSZH Number of shieldings 2 x Type 1, shielding foil (alu) PiMF Type 2, shielding braid (alu) overall shield Kink protection both sides LSZH compliant yes max. bandwidth 250 MHz Consumption Unit 1 pc. in polybag Color grey Operating temperature from -20 °C Operating temperature up to 65 °C
