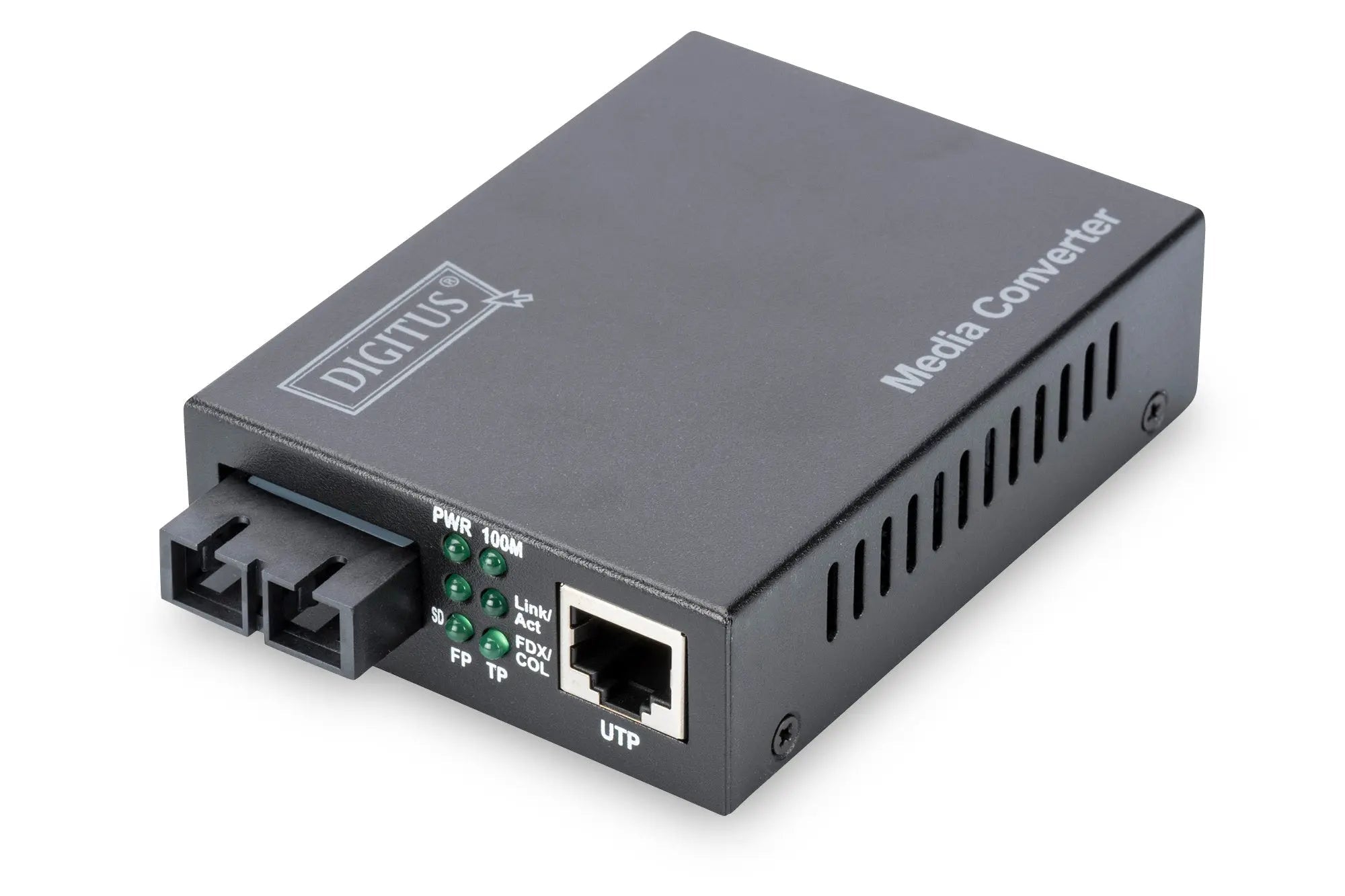

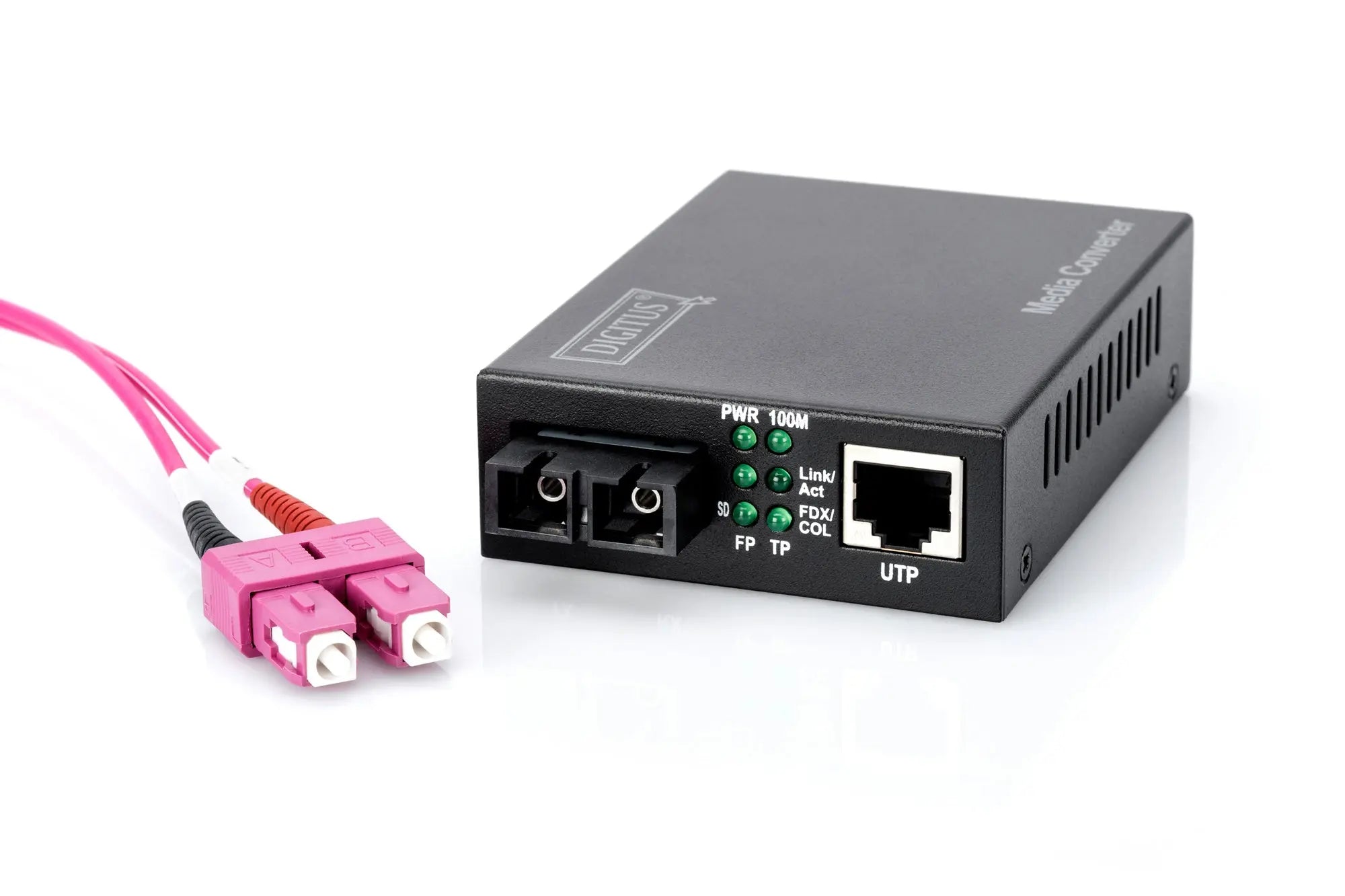

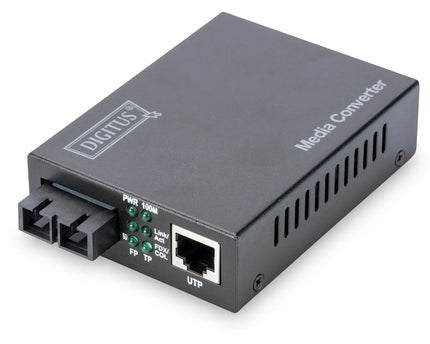

Fast Ethernet Media Converter, RJ45/SC
Product form
Fast Ethernet Media Converter, RJ45/SC
Technical details Transforms wire-based networking media to fiber optic High quality and excellent reliability 10/100Base-TX to 100Base-FX Connections: 1x RJ45,...
Read more
Delivery time 3-5 working days
(€37,87 Incl. VAT) €31,30
check
Lowest price guarantee!
check
Shipping from just €5.95
check
Pay afterwards after 14 days
check
2 year warranty on your purchase
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Color: Zwart
Suitable for: 19 inch cabinets
Technical details
Transforms wire-based networking media to fiber optic
High quality and excellent reliability
10/100Base-TX to 100Base-FX
Connections: 1x RJ45, 1x SC duplex
Distance up to 20 km
Wavelength: 1310nm
Singlemode dual fiber
Automatic cable detection - auto MDI / MDI-X function
Automatic negotiation of full and half duplex

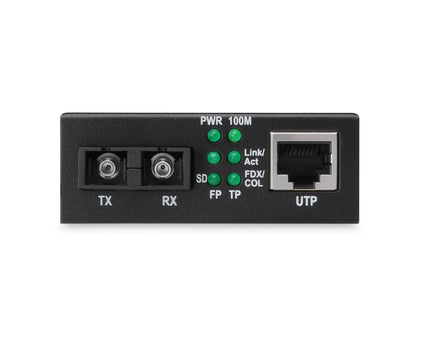

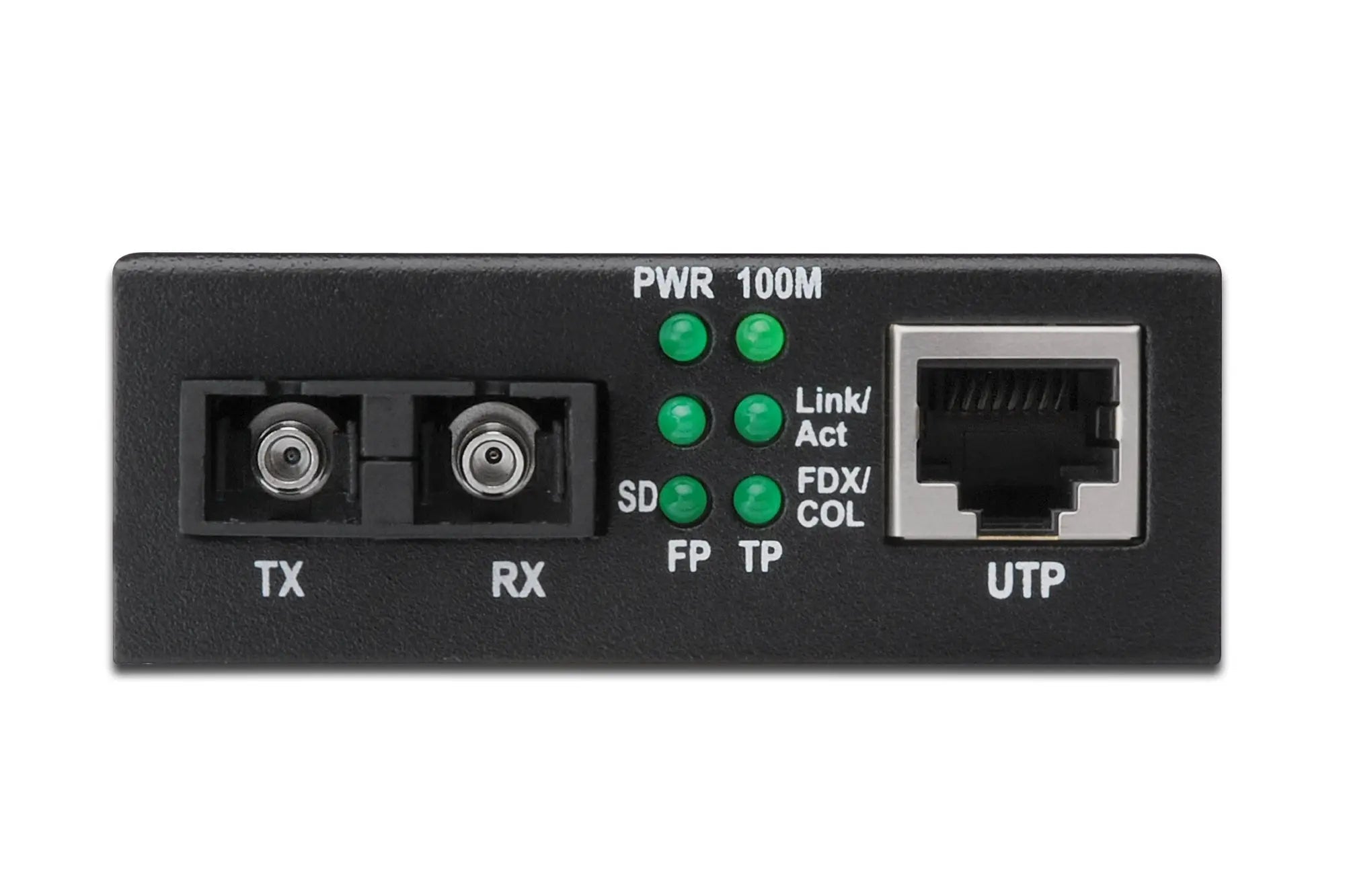

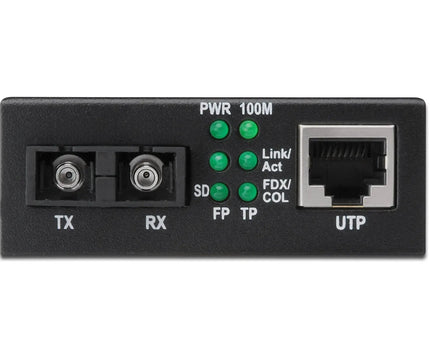

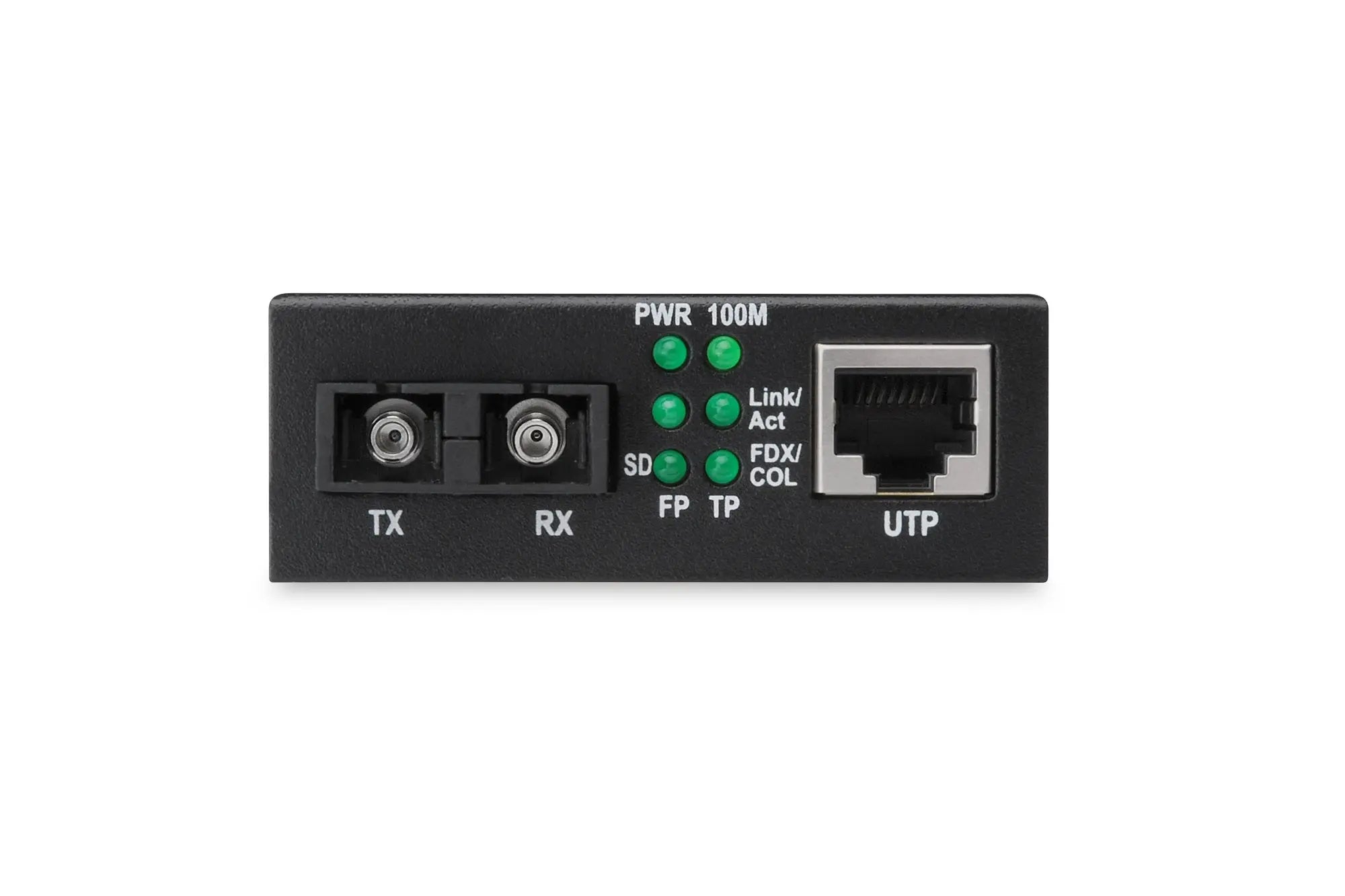

Diagnostic and monitoring LEDs for power, connection and port operation status
Link Fault Pass Through (LFP) function for easier network maintenance
Suitable for 9/125µm fiber optic cables
Transmit power: Minimum -15 dBm, Maximum -8 dBm
Sensitivity Receiving Power: Minimum -38 dBm
Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
128kB data buffer
Operating temperature: 0 to 55°C
Dimensions (L x W x H): 95mm x 70mm x 26mm
Weight: 200g
Standalone converter with external power supply
Input voltage: 5V DC
Maximum current: 800mA
Power consumption: 2.5W
Connection 1: RJ45
Connection 2: SC
Mode: Singlemode
Distance (km): 20
Industrial use: no
Broadcast Mode: Unidirectional
PoE injector: no
Ethernet Speed: Fast Ethernet
