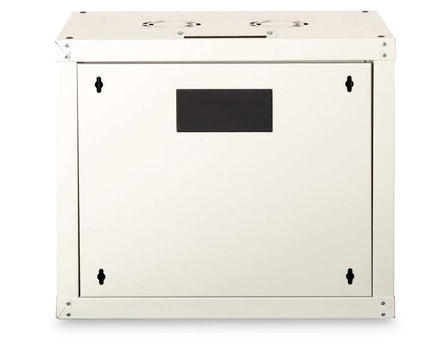

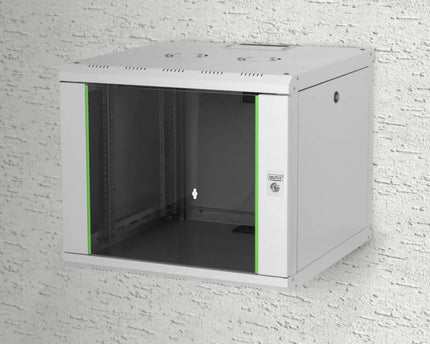

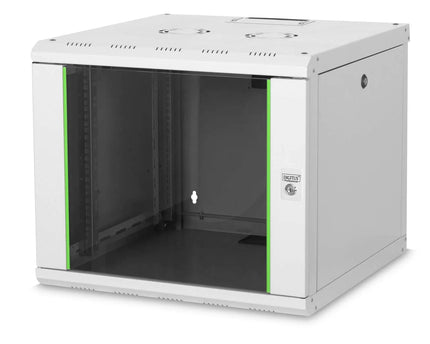

9U wall mounting cabinet, Unique 509x600x600 mm, color gray (RAL 7035)
9U wall mounting cabinet, Unique 509x600x600 mm, color gray (RAL 7035)
TECHNICAL DETAILS Safety class IP20 Lockable safety glass door with steel frame 210° door opening angle 1-point locking mechanism on... Read more
SKU: DN-19 09U-6/6
(€263,77 Incl. VAT)€217,99
- Lowest price guarantee!
- Shipping from just €5.95
- Pay afterwards after 14 days
- 2 year warranty on your purchase
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
Additional products
-
-
-
1U pull-out shelf for 600 mm deep racks 40x485x368 mm, up to 25 kg, grey (RAL 7035)
(€62,92 Incl. VAT)€52,00
-
19 Inch 1U shelf for racks from 600 mm depth 44x482x400 mm, up to 15 kg, gray (RAL 7035)
(€27,95 Incl. VAT)€23,10
-
19 Inch 2U shelf for racks from 450 mm depth 88.5x483x352 mm, up to 25 kg, gray (RAL 7035)
(€30,01 Incl. VAT)€24,80
-
-
TECHNICAL DETAILS
- Safety class IP20

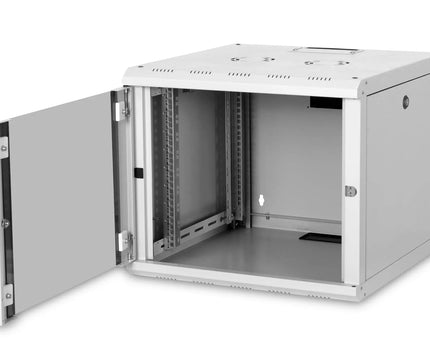

- Lockable safety glass door with steel frame
- 210° door opening angle
- 1-point locking mechanism on the front door
- Side panels are lockable and removable
- 483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
- 483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
- Maximum installation depth: 450 mm
- Cable entry at the rear and bottom with plastic cover and top with sliding cover
- Roof is prepared for fan units (punched out entrances)
- Ventilation slots for active and passive ventilation and extraction
- Multiple grounding points for rack components
- Incl. mounting kit (screws, cage nuts, washers)
- Rack is fully assembled
- Installation depth equipment min.-max.: 320-450 mm
- Cabinet type: Wall mounted cabinet
- Colour: light grey, RAL 7035
- Depth: 600 mm
- Front door: Glass door, single opening
- Load capacity: 100 kg
- Side panels: Both sides
- Units: 9
- Width: 600mm
- IP protection class: IP20
- Mounted: yes
PACKAGE CONTENTS
- Ground wire set
- Mounting kit (screws, cage nuts, washers)
- 2 x keys
