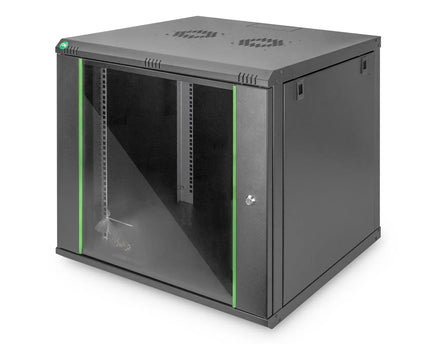

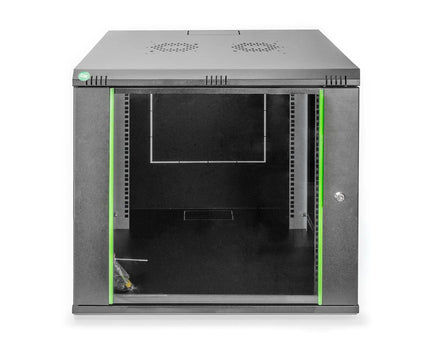

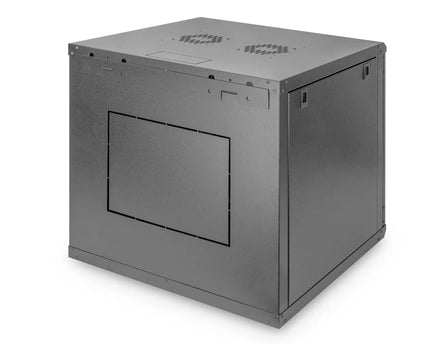

9U wall cabinet 478x600x600 mm, color black (RAL 9005)
9U wall cabinet 478x600x600 mm, color black (RAL 9005)
(€199,65 Incl. VAT)€165,00
SKU: DN-19 09U-6/6-EC-SW
✅ Laagste prijsgarantie!
✅ Verzending vanaf slechts € 4,95
✅ Betaal achteraf na 14 dagen
✅ 2 jaar garantie op je aankoop
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
TECHNICAL DETAILS
- Safety class rating IP20

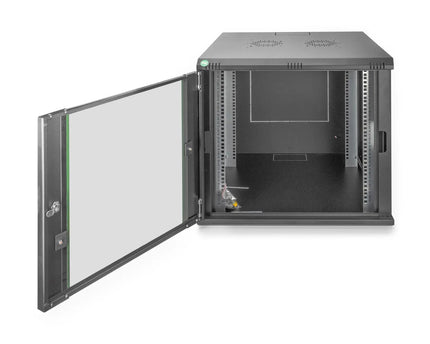

- Lockable safety glass door with steel frame
- 210° by opening angle
- 1-point locking mechanism on the front door
- 483 mm (19") profile rails mounted on the front and rear side inside of the rack, galvanized
- 483 mm (19") profile rails are adjustable in depth and with height unit marking
- 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
- Cable entry on the rear side, roof and base (pre-punched breakouts)
- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting
- 4 earthing points (base, side panel and front door) with protection cap
- Equipment mounting depth min.-max.: 320 - 450 mm
- Cabinet type: Wall mounting cabinet
- Color: black, RAL 9005
- Depth: 600mm
- Front door: Glass door, single opening
- Load capacity: 60 kg
- Side panels: Both sides
- Units: 9
- Width: 600mm
- IP protection class: IP20
- Mounted: yes
PACKAGE CONTENT
- Earthing wire set
- Installation set (screws, cage nuts, washers)
- 2xKeys
