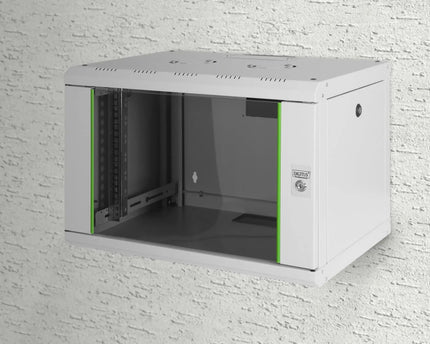

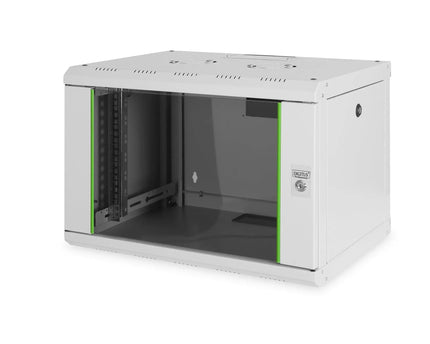

Name: 7U wall mounting cabinet, Dynamic 389x600x450 mm, color gray (RAL 7035)
Brand: Digitus
SKU: DN-19 07-U-EC
Price: 109.5 EUR

1 / 4

Pre-order

Product form

TECHNICAL DETAILS Safety class IP20 Lockable safety glass door with steel frame 235° door opening angle 1-point locking mechanism on... Read more

SKU: DN-19 07-U-EC

Delivery time 3-5 working days

(€132,50 Incl. VAT)€109,50

Do you have any questions or need advice? We are happy to help you!

1U metal cable management bar with 5 brackets
(€11,76 Incl. VAT)€9,72
M6 cage nuts and rings 50 pcs
(€15,67 Incl. VAT)€12,95
19 Inch 2U shelf for racks from 450 mm depth 88.5x483x352 mm, up to 25 kg, gray (RAL 7035)
(€30,01 Incl. VAT)€24,80
19 Inch 1U shelf for racks from 400 mm depth 45x482x250 mm, up to 15 kg, gray (RAL 7035)
(€24,20 Incl. VAT)€20,00
M6 cage nuts and rings 20 pcs
(€6,66 Incl. VAT)€5,50
Cat6a Patch Panel 24 Port RJ45 Shielded
(€83,76 Incl. VAT)€69,22

Safety class IP20
Lockable safety glass door with steel frame
235° door opening angle
1-point locking mechanism on the front door
483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
0.8 - 1.2 mm thick sheet steel with high load-bearing capacity, powder-coated
Cable entry at the rear, roof and bottom (pre-punched recesses)
Roof is prepared for fan units (punched out entrances)
Ventilation slots for active and passive ventilation and extraction
4 grounding points (bottom, side panel and front door) with protective cover
Installation depth equipment min.-max.: 335 -380 mm
Cabinet type: Wall mounted cabinet
Colour: light grey, RAL 7035
Depth: 450 mm
Front door: Glass door, single opening
Load capacity: 60 kg
Side panels: Both sides
Units: 7
Width: 600mm
IP protection class: IP20
Mounted: yes
