6U wall mounting cabinet 330x312x300 mm (WxHxD), gray
6U wall mounting cabinet 330x312x300 mm (WxHxD), gray
The wall enclosures are available in three height units (6U, 9U, 12U) and feature a fully glass door and a... Read more
SKU: DN-10-05U-1
(€89,54 Incl. VAT)€74,00
- Lowest price guarantee!
- Shipping from just €5.95
- Pay afterwards after 14 days
- 2 year warranty on your purchase
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
Additional products

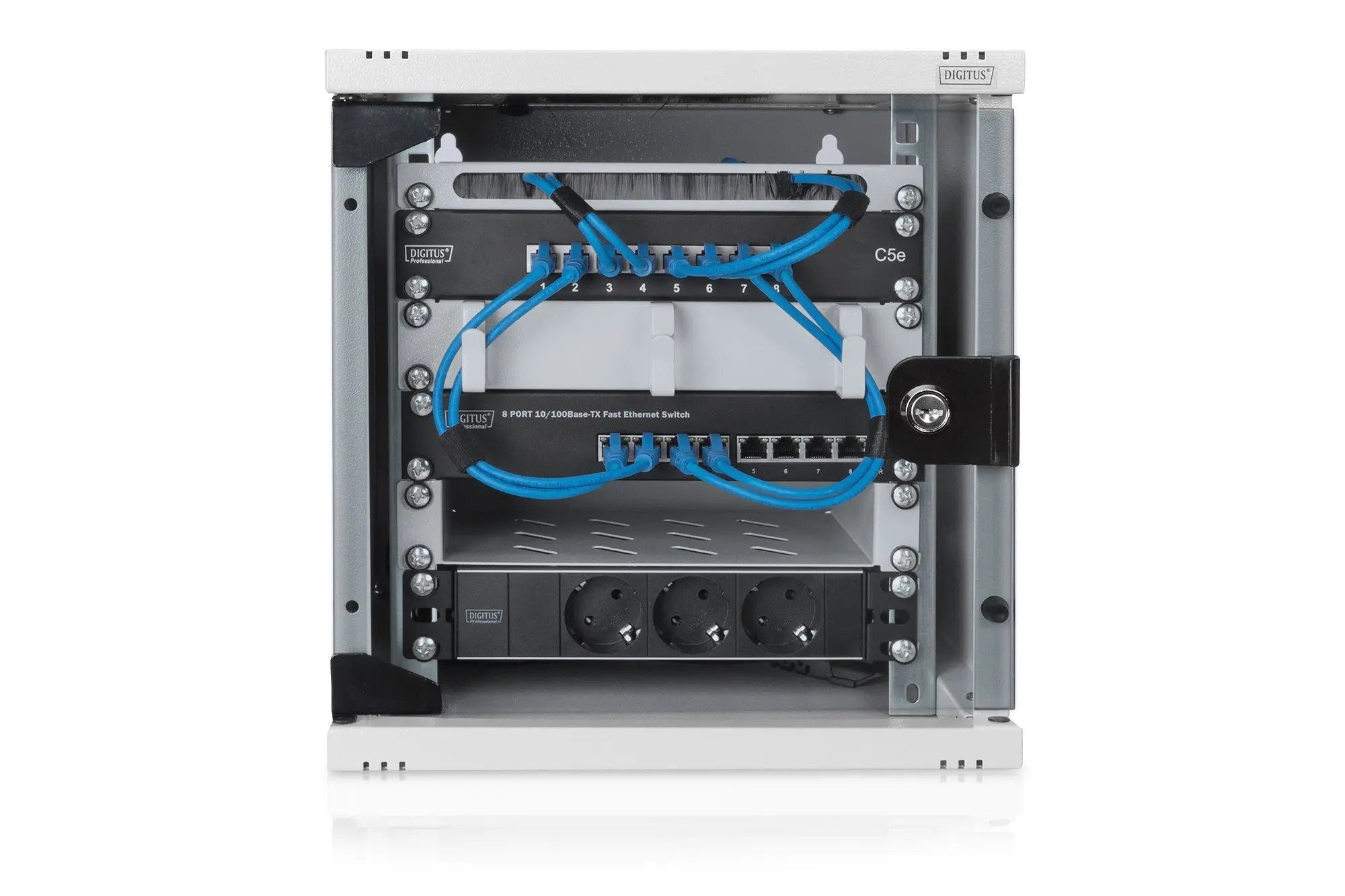

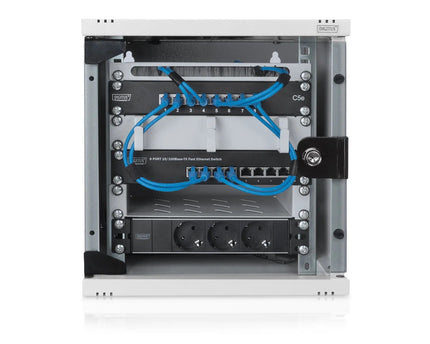

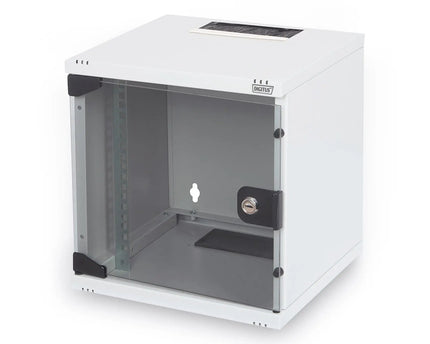

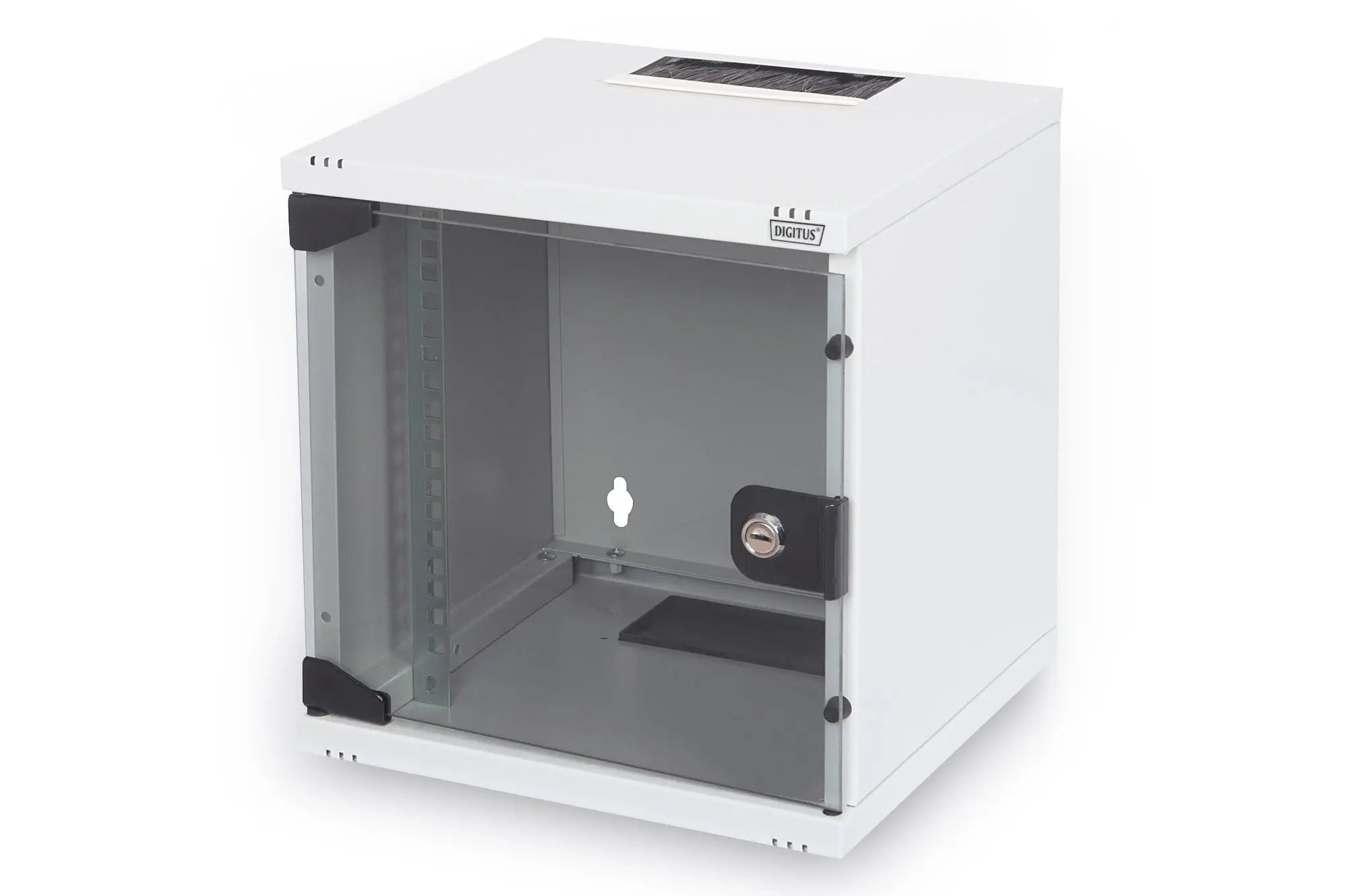

The wall enclosures are available in three height units (6U, 9U, 12U) and feature a fully glass door and a cable entry with brushes in the top and bottom. A pair of galvanized 254 mm (10") profile rails are installed inside, marked with legible height units. These can be adjusted in depth. Each cabinet is a robust steel construction of up to 1.5 mm thick sheet steel. The color scheme is in the form made of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). In addition, the cabinets can be completely dismantled if necessary thanks to the demountable design.
TECHNICAL DETAILS
- Protection class IP20
- Lockable safety glass door
- 200° door opening angle
- 1-point locking on the front door
- 254 mm (10") profile rails mounted at the front in the housing, galvanized
- 254 mm (10") profile rails are depth adjustable
- 1.1 - 1.5 thick sheet steel with a high load capacity, powder-coated
- Cable entry with brush strip in the roof and with plastic cover in the floor
- Ventilation slots for active and passive ventilation
- Installation depth for components max.: 240 mm
- Includes grounding bolt on the housing bottom
- Cabinet type: Wall mounted cabinet
- Colour: light grey, RAL 7035
- Depth: 300 mm
- Front door: Glass door, single opening
- Load capacity: 30 kg
- Side panels: Both sides
- Units: 6
- Width: 312mm
- IP protection class: IP20
- Mounted: yes
PACKAGE CONTENTS
- Mounting kit (screws, cage nuts, washers)
- 2x key
