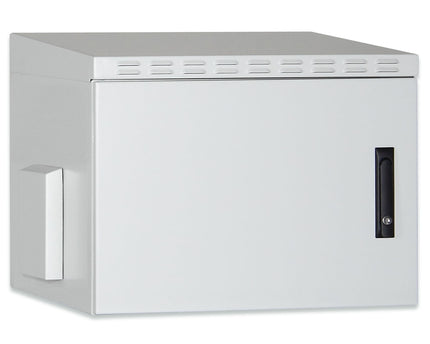

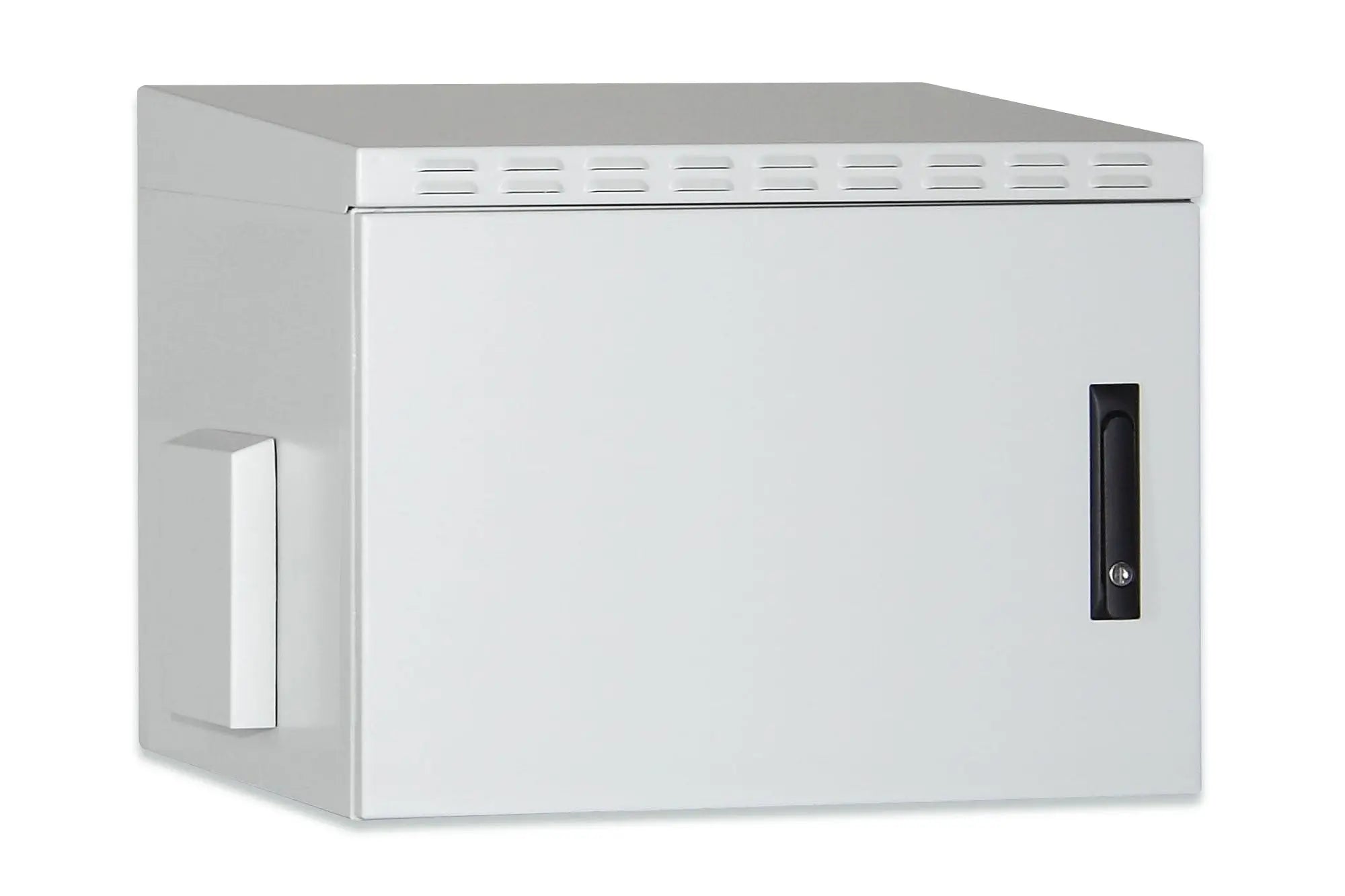

16U wall mounting box, outdoor, IP55 891x600x450 mm, color gray (RAL 7035)
16U wall mounting box, outdoor, IP55 891x600x450 mm, color gray (RAL 7035)
(€738,10 Incl. VAT)€610,00
SKU: DN-19 16U-I-OD
✅ Laagste prijsgarantie!
✅ Verzending vanaf slechts € 4,95
✅ Betaal achteraf na 14 dagen
✅ 2 jaar garantie op je aankoop
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
Technical data
- Safety class IP 55
- Lockable steel front door with pivot lever
- 140° door opening angle
- 3-point locking mechanism on the front door
- Front door with earth cable and two welded U-shape reinforcement bars and gas chain system

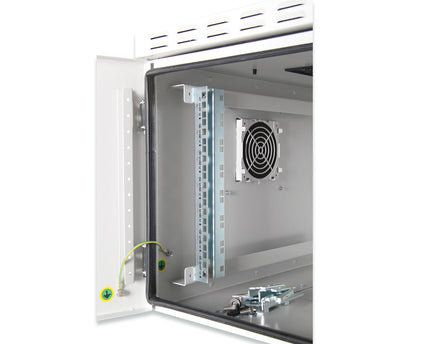

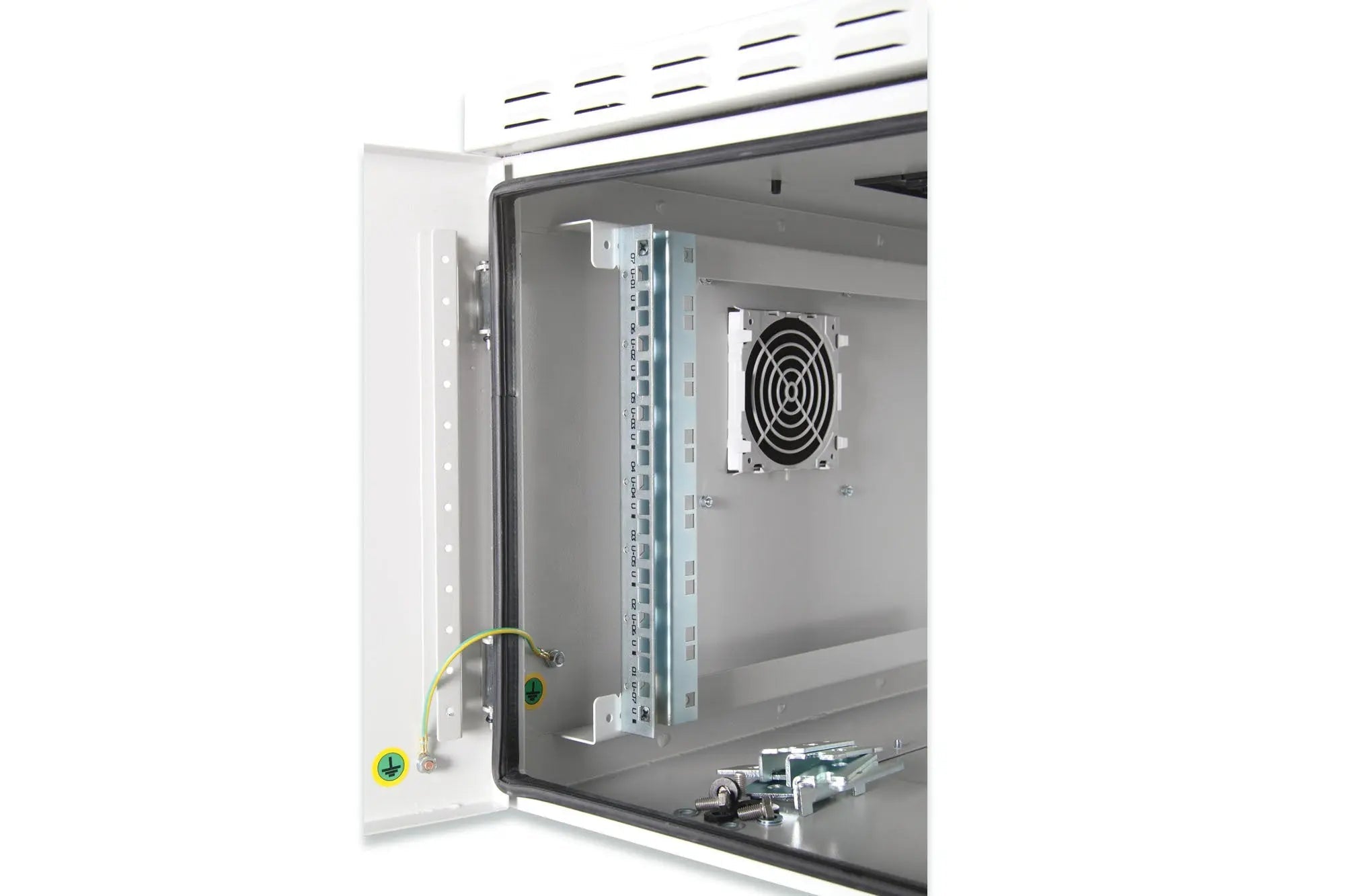

- 483 mm (19") profile rails mounted to the front of the inside of the cabinet, galvanized
- Profile rails of 483 mm (19") are adjustable in depth and equipped with height unit marking
- 1.5 mm strong sheet steel with a high load-bearing capacity, powder-coated
- Single welded housing for increased strength
- Cable entries in base: 2x M32, 1x M63, 2x PVC blind cap (with diameter of 28 mm)
- Roof canopy provides protection for suitable fan units and provides ventilation and hot air
- Integrated air ventilation inlets ensure the supply of fresh air
- incl. 4 pieces. Mounting brackets, 3 mm strong, as well as suitable screws and washers, for wall mounting
- Installation depth equipment min.-max.: 142-342 mm
- Distance from installation holes to wall mounting (H x W) in mm: 698 x 550
- Cabinet type: Wall mounted cabinet, outdoor
- Colour: light grey, RAL 7035
- Depth: 450 mm
- Front door: Steel door, closed, single opening
- Load capacity: 100 kg
- Units: 16
- Width: 600mm
- IP protection class: IP55
- Mounted: yes
Contents of the package
- Ground wire set
- Installation kit (screws, cage nuts, washers)
- 2 x Keys
