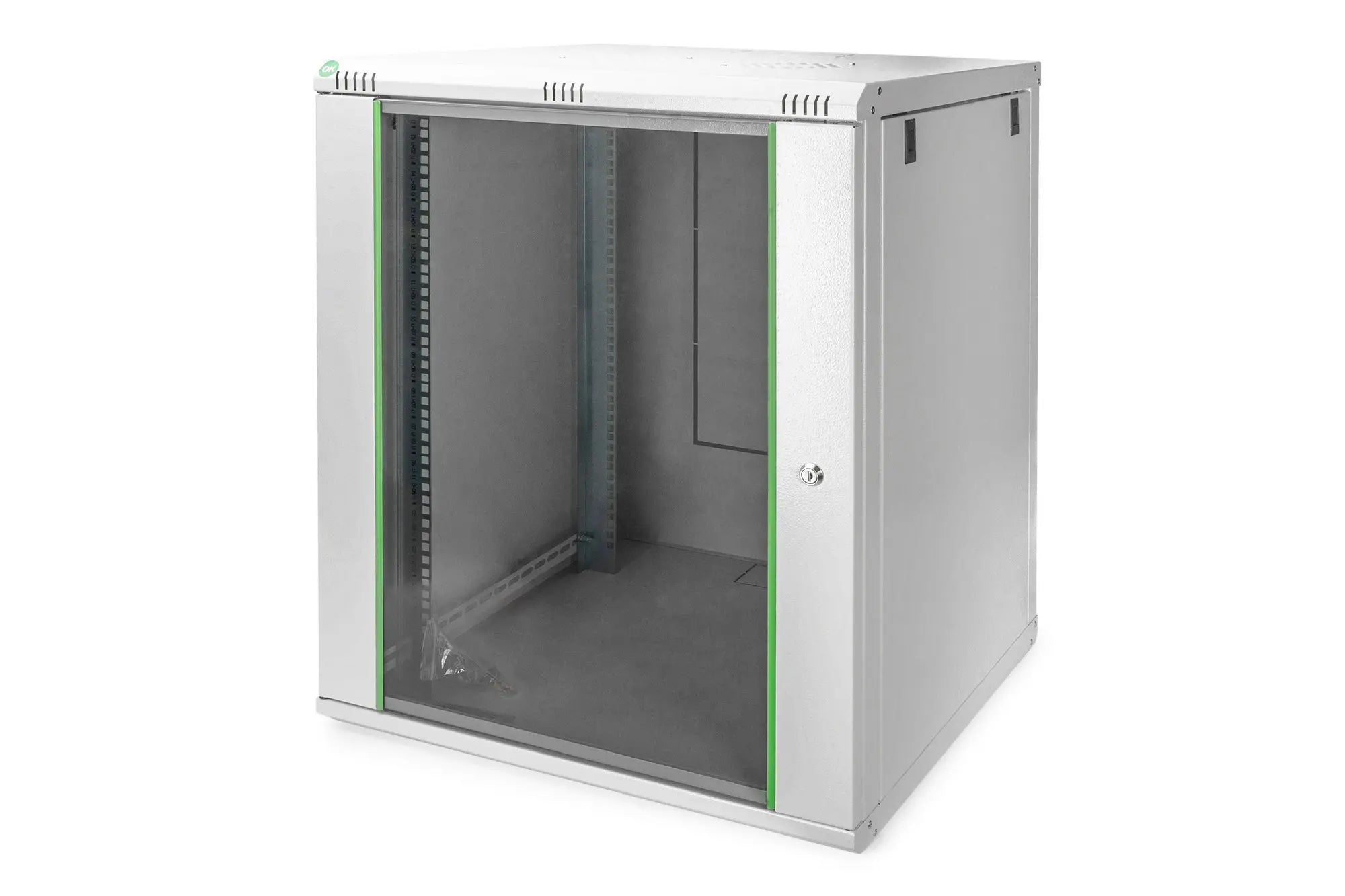

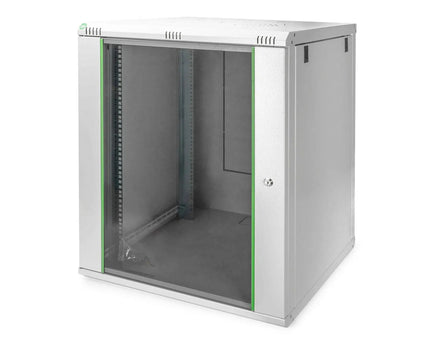

16U wall cabinet, Dynamic Basic 789x600x600 mm, color gray (RAL 7035)
16U wall cabinet, Dynamic Basic 789x600x600 mm, color gray (RAL 7035)
TECHNICAL DETAILS Safety class IP20 Lockable safety glass door with steel frame 235° door opening angle 1-point locking mechanism on... Read more
SKU: DN-19 16U-6/6-EC
(€248,05 Incl. VAT)€205,00
- Lowest price guarantee!
- Shipping from just €5.95
- Pay afterwards after 14 days
- 2 year warranty on your purchase
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
Additional products
-
-
-
19 Inch 1U Fixed Shelf for 600mm Deep Racks 44x483x358mm, Adjustable 350-550mm Depth, Grey
(€34,49 Incl. VAT)€28,50
-
1U pull-out shelf for 600 mm deep racks 40x485x368 mm, up to 25 kg, grey (RAL 7035)
(€62,92 Incl. VAT)€52,00
-
19 Inch 1U shelf for racks from 600 mm depth 44x482x400 mm, up to 15 kg, gray (RAL 7035)
(€27,95 Incl. VAT)€23,10
-
TECHNICAL DETAILS
- Safety class IP20
- Lockable safety glass door with steel frame
- 235° door opening angle
- 1-point locking mechanism on the front door
- 483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
- 483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
- 0.8 - 1.2 mm thick sheet steel with high load-bearing capacity, powder-coated
- Roof is prepared for fan units (punched out entrances)
- Ventilation slots for active and passive ventilation and extraction
- 4 grounding points (bottom, side panel and front door) with protective cover
- Installation depth equipment min.-max.: 320 - 450 mm
- Cabinet type: Wall mounted cabinet
- Colour: light grey, RAL 7035
- Depth: 600 mm
- Front door: Glass door, single opening
- Load capacity: 60 kg
- Side panels: Both sides
- Units: 16
- Width: 600mm
- IP protection class: IP20
- Mounted: yes
PACKAGE CONTENTS
- Ground wire set
- Mounting kit (screws, cage nuts, washers)
- 2 x keys
