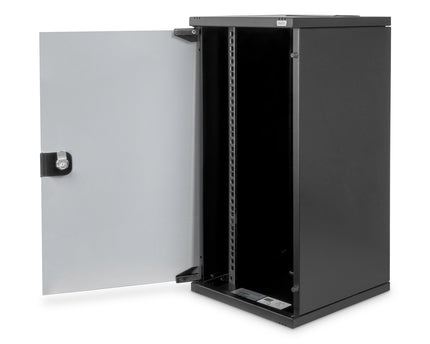

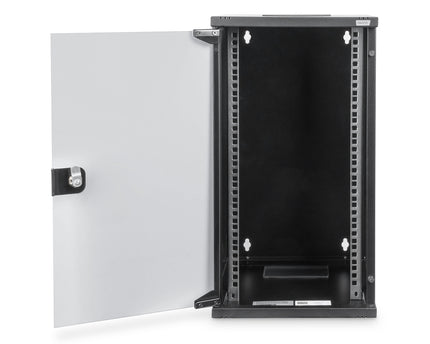

12U wall mounting cabinet 592x312x30 mm (WxHxD), black
12U wall mounting cabinet 592x312x30 mm (WxHxD), black
The compact 254 mm (10") solutions allow you to install your network wherever you want. The wall enclosures are available... Read more
SKU: DN-10-12U-B
(€126,45 Incl. VAT)€104,50
- Lowest price guarantee!
- Shipping from just €5.95
- Pay afterwards after 14 days
- 2 year warranty on your purchase
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
Additional products
The compact 254 mm (10") solutions allow you to install your network wherever you want. The wall enclosures are available in three height units (6U, 9U, 12U) and feature a full glass door and a cable entry with brushes in the top and bottom. Inside, a pair of galvanized 254 mm (10") profile rails are installed, marked with readable height units. These can be adjusted in depth. Each cabinet is a robust steel construction of maximum 1.5 mm thick sheet steel. The color scheme is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). Door hinges can be changed. In addition, the cabinets can be completely dismantled if necessary thanks to the demountable design.
TECHNICAL DETAILS
- Protection class IP20
- Lockable safety glass door
- 200° door opening angle
- 1-point locking on the front door
- 254 mm (10") profile rails mounted at the front in the housing, galvanized
- 254 mm (10") profile rails are depth adjustable
- 1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated
- Cable entry with brush strip in the roof and with plastic cover in the floor
- Ventilation slots for active and passive ventilation
- Installation depth for components max.: 240 mm
- Includes grounding bolt on the housing bottom
- Cabinet type: Wall mounted cabinet
- Colour: black, RAL 9005
- Depth: 300 mm
- Front door: Glass door, single opening
- Load capacity: 30 kg
- Side panels: Both sides
- Units: 12
- Width: 312mm
- IP protection class: IP20
- Mounted: yes
PACKAGE CONTENTS
- Mounting kit (screws, cage nuts, washers)
- 2x key
